Kleemann │ An All-Electric Plant Train Impresses Across the Board in Sweden

Cost-Efficient and Future-Oriented

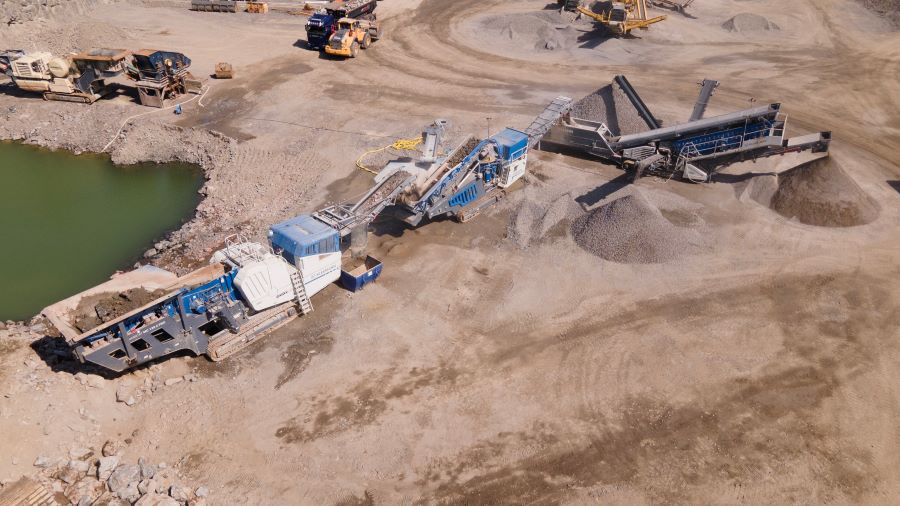

In the coastal region of Stockholm, a construction contractor is taking another step into the future: the entire crushing and screening process there is handled by an exclusively electrically powered, line coupled plant train from Kleemann consisting of a MOBICAT MC 120 PRO jaw crusher, a MOBICONE MCO 110 PRO cone crusher, and a MOBISCREEN MSC 953 EVO screening plant.

The spectrum of applications it can handle is impressive. As the contractor predominantly processes granite and recycling materials, it is often necessary to adapt the machine settings to cope with the wide range of different feed materials. This is why a complete plant train consisting of three Kleemann machines is now in use. From the jaw crusher, the crushed material with a grain size of 0 – 150 mm is passed on to the cone crusher, where, after further crushing to a size of 0 – 60 mm, it finally reaches the mobile classifying screen, which separates it into three fractions with the following grain sizes: 0 – 16 mm, 16 – 32 mm, and >32 mm.

Purely Electric – Out of Conviction

There’s quite a difference to the way the company previously handled materials processing. Today, the entire plant train is exclusively electrically powered. “Our decision to go fully electric was motivated by energy-saving considerations and the desire to reduce emissions,” explains Freddie Erickson, co-owner of Kentas Last & Schakt AB.

The investment also pays off in financial terms: The company estimates that the operating costs otherwise incurred by diesel fuel consumption are more or less cut by half when using an electric power supply. The procedures are also simpler and save valuable time: No daily refueling, no warm-up times, and, as the electrical systems are more reliable, maintenance tasks are also easier and less complex.

The conditions at the location also justified the Swedish company’s project from a financial and logistical point of view. A substantial six-figure sum in euros was invested in infrastructure measures, including a transformer station and the laying of underground power supply lines. There was no state funding.

Rugged Technology for Challenging Materials

The individual components of the plant train are interlinked by smart line coupling, which, thanks to automated control, guarantees a stable process from end-to-end. The machines communicate via fill level sensors and autonomously regulate their throughput: The upstream machine, for example, reduces the feed when the downstream machine reports a high fill level. If an emergency stop is activated anywhere on the train, all machines are stopped simultaneously.

SPECTIVE CONNECT is used for on-site operating. This allows machine data and settings to be conveniently viewed and adjusted on a smartphone – safely and efficiently, without having to be present in person directly at the plant.

Pushing the Envelope of Change

The experience gathered with all-electric operation has been entirely positive. In light of these results, the company in Sweden is already planning the electrification of further machines: “We are actively working on the conversion of as many of our machines as possible to electric power. This is clearly the way forward, and we are determined to implement this change across our entire fleet.”

Facts and Figures

Plant train (exclusively electrically powered)

• Jaw crusher: MC 120 PRO
• Cone crusher: MCO 110 PRO
• Screening plant: MSC 953 EVO

Feed material

• Granite
• Recycling material, piece sizes: 0–600 mm

Final products (from the screening plant)

• Fine grain: 0 – 16 mm
• Medium grain: 16 – 32 mm
• Oversize grain: >32 mm
