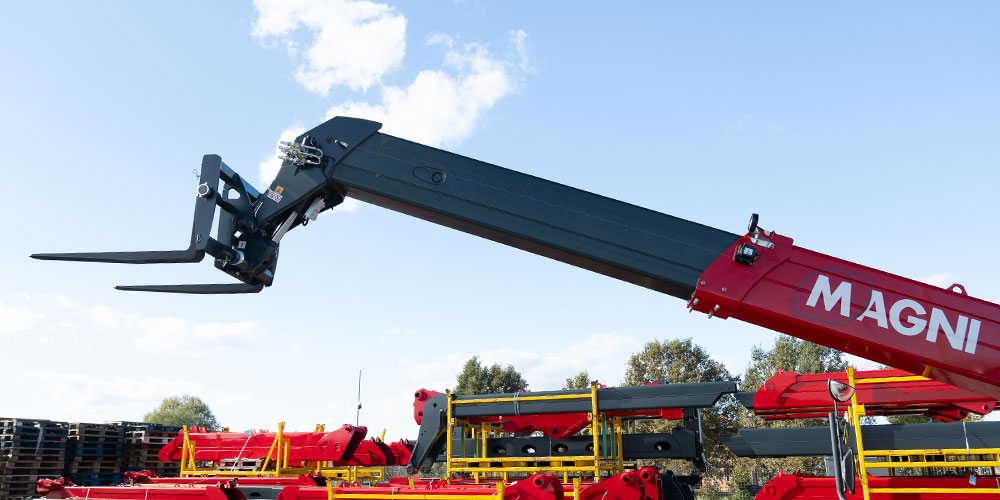

The Magni TH fork carriage range plays a central role in extending the applications of telescopic handlers, offering solutions designed to ensure control, safety and adaptability in every operating context.
Alongside the standard fork carriages, ideal for the conventional handling of pallets and traditional load units, the range includes dedicated attachments developed for complex applications and the handling of specialised materials.
Rotating fork carriages, dedicated solutions: advanced control and application versatility
The Magni TH fork carriage range is further enhanced by new solutions engineered to deliver precision, safety and maximum manoeuvrability when handling bulky materials, even within confined spaces.
Within the range, the rotating models mark a significant evolution over standard configurations, thanks to their ability to orient the load directly during loading and unloading operations, reducing machine movements and optimising operating times.
TILTING – ROTATING FEM FORK CARRIAGE
Designed for applications requiring complete load control, this fork carriage combines continuous rotation and tilting, enabling extremely precise positioning even in complex operating contexts.
Main features:
- Front load capacity up to 5,000 kg
- Rotated load capacity up to 2,500 kg
- Continuous 360° rotation
- Tilt up to 70°
The capability to rotate and tilt the load during operations ensures greater accuracy in unloading and positioning, enhancing both efficiency and on-site safety.
ROTATING FEM FORK CARRIAGE
This configuration has been developed to provide high operational flexibility while maintaining full control under varying working conditions.
Operating specifications:
- Full 360° rotation up to 3 metres in height
- Above 3 metres, rotation is automatically limited to ±90° depending on the operating conditions
- Manual rotation lock available at ±90°
- Front load capacity up to 5,000 kg
- Rotated load capacity up to 2,500 kg
- Variable front capacity based on machine model
The automatic limitation system guarantees safe operation even under demanding conditions, adapting the attachment’s functionality to the working height and machine configuration.
2.5 T FEM FORK CARRIAGE WITH SIDE TILT – BIN EMPTYING
Specifically designed for the TH 3.6 model, this side-discharge fork carriage further broadens the application potential of the Magni TH compact machine.
Main features:
- Load capacity up to 2,500 kg
- Continuous 360° rotation
- Side tipping system for fast and controlled bin emptying
Thanks to the continuous rotation function, containers can be returned to the pick-up position in one smooth movement, reducing cycle times and increasing productivity.
With these solutions, Magni TH reaffirms its commitment to developing attachments that expand machine capabilities, providing practical tools to enhance efficiency, control and safety across every application.
An attachment system that extends the machine’s potential
The Magni TH fork carriage range is not merely a simple accessory, but a genuine functional extension of the telescopic handler itself.
From standard handling tasks to specialised applications, each configuration is engineered to deliver:
- Greater productivity
- Advanced load control
- Operational safety
- Application versatility
With a continuously updated attachment catalogue, Magni TH remains committed to developing solutions that transform each machine into a highly adaptable tool, ready to meet the specific demands of every sector.
Discover the Magni TH Fork Carriage Range.
