Liebherr is expanding its range of products for pile driving: the rope-suspended leader, combined with the long-established H 10 hydraulic hammer, is an efficient solution for driving free-standing piles – both vertically and at an inclination. Customers have a great deal of flexibility as a wide variety of cranes can be used as carrier machines. The H 10 impresses with its noise-reducing design and extremely high impact energy.
Nenzing (Austria), July, 2026 – The rope-suspended leader with hydraulic hammer H 10 enables piling applications to be carried out without the need for a specific piling rig as it can be flexibly mounted to a wide variety of cranes, including duty cycle machines. Operators benefit from a significantly expanded range of work: piles can be inserted even at larger distances or behind obstacles, which is especially advantageous in marine or port construction. With a combined weight of 27 tonnes, the leader and hammer are easily placed over the pile and work can begin immediately. The system is suitable for piles with weights up to 30 tonnes, a maximum diameter of 1,220 millimetres and a pile inclination of up to 1:3.
More flexibility and comfort – less noise
Thanks to the modular weight system the hydraulic hammer H 10 is optimally adapted to a variety of piling requirements. In accordance with the designation, the maximum piling weight is 10 tonnes. The sound power level of four simultaneously operated Liebherr hydraulic hammers is the same as that of a single conventional hammer without noise reduction – a distinct advantage for environment and working comfort. In addition to its noise-reducing design, the H 10 convinces with an efficiency rate of 95 per cent, meaning it transfers virtually all of the impact energy to the pile. In addition, the hammer model is also compatible with the Liebherr LRB and LRH series of piling rigs.
By utilising the carrier machines already available at the customer site, the rope-suspended leader with hammer is a cost-effective solution that can be installed with minimum effort. Liebherr supplies a stand-alone control system for third-party machines. This gives customers maximum flexibility and an efficient solution for demanding piling work. The model was presented as part of the 50th anniversary of Liebherr-Werk Nenzing GmbH in June 2026 and is now available.
About the Liebherr Group
The Liebherr Group is a family-run technology company with a highly diversified product portfolio. The company is one of the largest construction equipment manufacturers in the world. It also provides high-quality and user-oriented products and services in a wide range of other areas. The Liebherr Group includes over 150 companies across all continents. In 2025, it employed more than 55,000 staff and achieved combined revenues of over 14 billion euros. Liebherr was founded by Hans Liebherr in 1949 in the southern German town of Kirchdorf an der Iller. Since then, the employees have been pursuing the goal of achieving continuous technological innovation and bringing industry-leading solutions to its customers

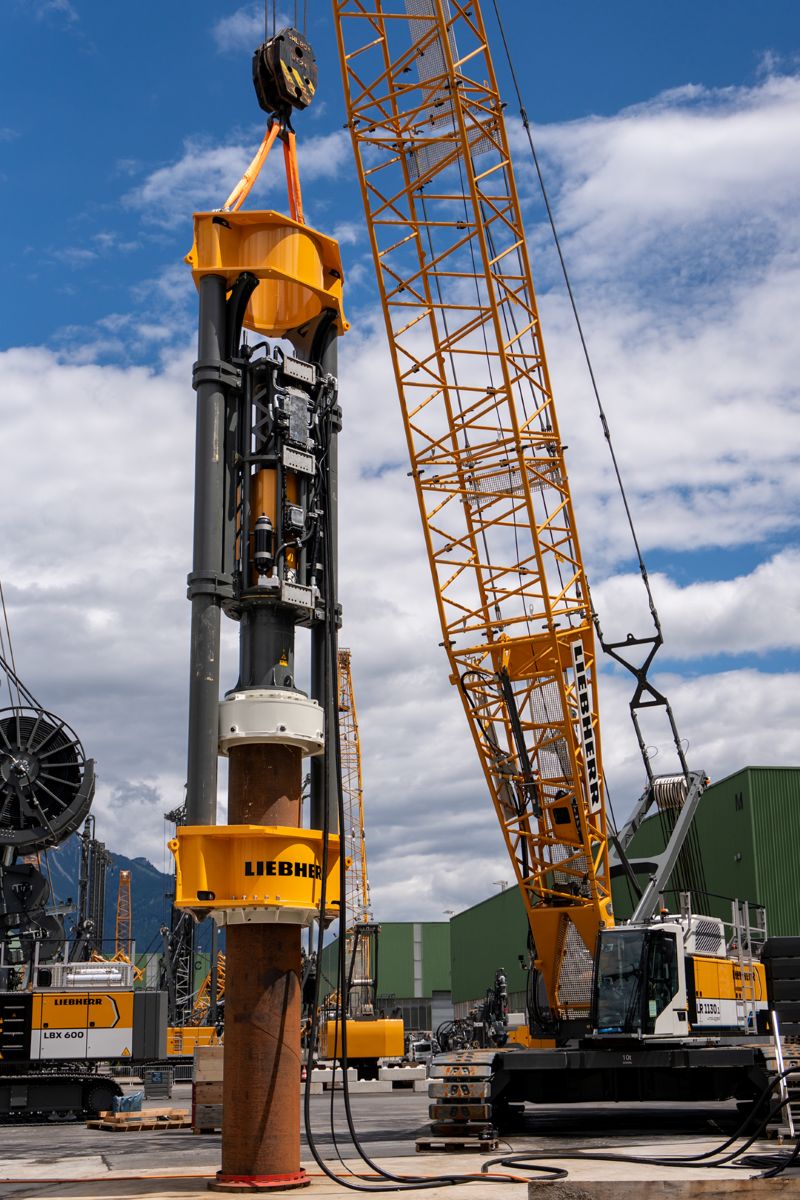

Cover: A flexible solution for pile driving: the rope-suspended leader with hammer type H 10 from Liebherr.
